Description

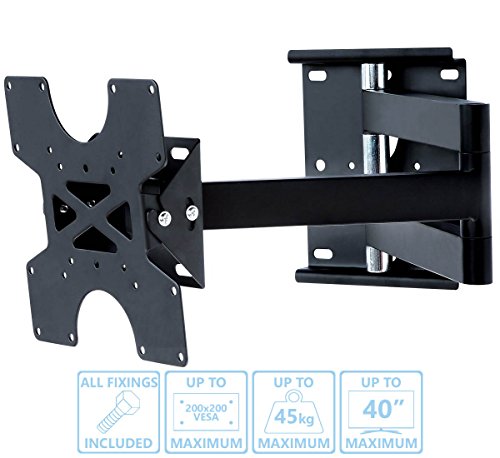

Ultimate Mounts Super Flat Cantilever TV Wall Bracket for up to 40 inch TVs

TV Size:

– 16 inch up to 40 inch

VESA Compatible Dimensions:

– 75mm x 75mm
– 100mm x 100mm
– 200mm x 100mm
– 200mm x 200mm

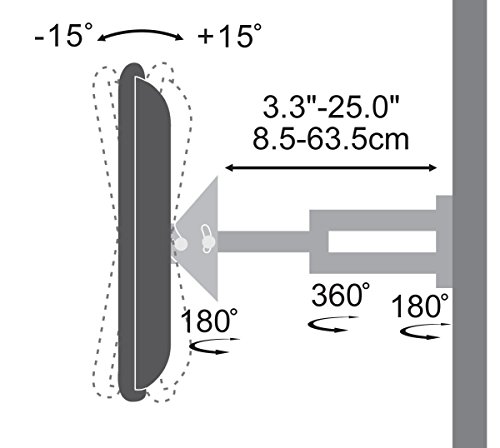

Tilting Feature:

– Upwards Tilt of 15 Degrees
– Dowards Tilt of 15 Degrees

Swivel Feature:

– 360 Degrees of Rotation

Distance to the wall:

– Between 85mm to 635mm!

Maximum Load Capacity:

– Up to 45kg

Material:

– Powder Coated Carbon Steel

Installation Compatibility:

– Solid Wall
– Single Stud

Fixings Included:

– 4x Plastic Wall Anchors
– 4x Self Tapping Wall Screws
– Assorted Screw Pack for All TVs
– Assorted Plastic Spacers
– Assorted Metal Washers

Model:

– UM2703L

Dimensions:

– All Dimensions Available In The Images

Whats Included in the box?

– TV Wall Bracket
– All Fixings Listed Above
– Instruction Manual

VESA Dimensions is the most important specification when considering the best bracket for your TV. Please double check your TV is compatible with this bracket s maximum VESA (200mm x 200mm) by checking your TV s manual or by measuring the distance between the 4 holes on the rear of your TV.

Ultimate mounts UM2703L
For 16 inch to 40 inch TVs
Extension arm extends TV from 855mm to 650mm off the wall Tilts 15 degrees
Max weight capacity 45kgs

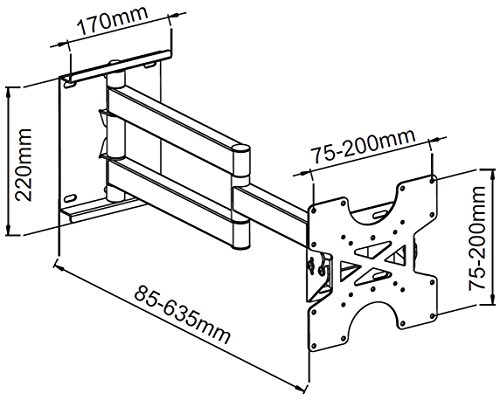

Dimensions: Back plate 170mm wide x 220mm high. Only 85mm when flat and extends up to 635mm
