Description

TV Wall Mount Bracket for 22-50″ TV LED LCD Plasma Flat Panel Screen

Product Specification:
— Supportable Display Size: fits 22-50″ TVs
— Load Capacity: 66lbs(30kg)
— Material: 2.0mm SPCC (Cold Plate Steel)
— Tilt: 15 Degree of Forward
— Total Rotation: 90 Degree of Right / Left

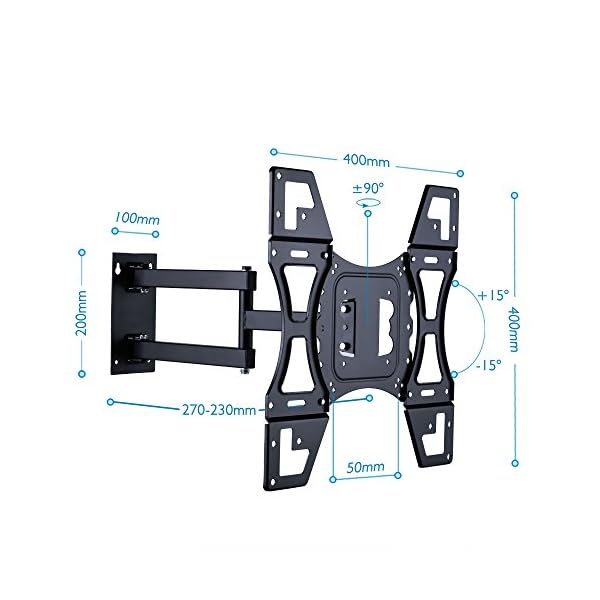

–Low Profile mount retracts to 3.15″ to save space, Extends 19.69″ from the wall
— Supports VESA standards up to 400x400mm
— Compliant to VESA 75×75,100×100,100×200,200×200,300×300,400×200,400×300,400x400mm

Package Included:
1x TV Wall Mount

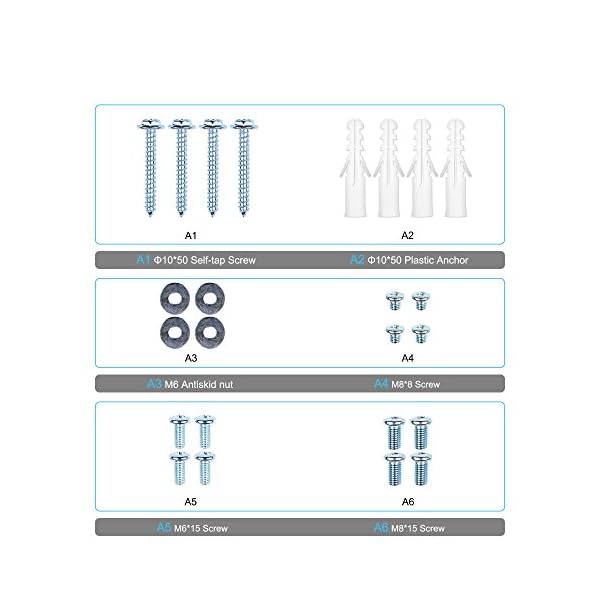

1x Standard Mounting Hardware set
1x User Manual

Does it fit my TV or monitor?

1. Please install this TV mount/bracket on Firm/Solid/Strong wall.
2. If the LED, LCD, Plasma TVs and other flat panel displays size is up to 55″, but the Max Hole Distance is within 400mm X 400mm (16″ x 16″), and the weight is within 66lbs(30kg), this TV mount/bracket also works perfect for you.
Fits for most of 22-50″ TVs up to 66lbs(30kg) with VESA(mounting hole pattern) 75×75,100×100,100×200,200×200,300×300,400×200,400×300,400x400mm
Low Profile mount retracts to 3.15″ to save space, Extends 19.69″ from the wall
Tilt: 15 degrees Down/Forward;Total Rotation:90 degrees Right/Left
Easy installation, installation manual and fitting screws and bolts included;
Please check VESA (mounting hole pattern), stud spacing, possible blocked cable/input and TV weight prior to making purchase decision to determine whether this TV wall mount fits your TV and the installation application.
