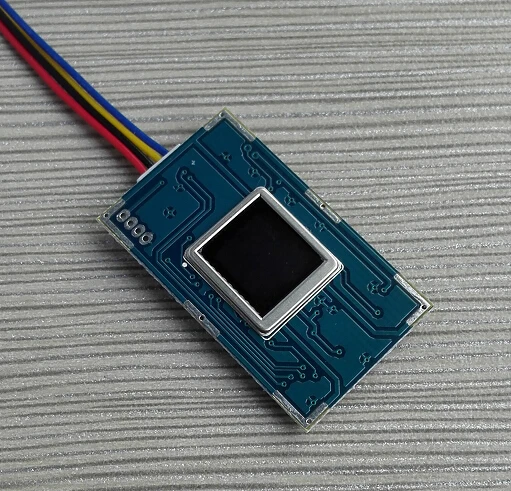

R301 Semiconductor Fingerprint Module/sensor Fingerprint recognizer

R301 Fingerprint moudle (semiconductor)

Integrated image collecting and algorithm chip together, ALL-in-One
the flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.

The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

Specification:

fingerprint reader R301 (semiconductor)

Interface: USBand RS232 (TTL)

Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps)

Fingerprint reader module size: 33.4 * 20.4 (mm)
Effective collection area: 10 * 10 (mm)

ScanningSpeed < 0.2 second

Verification Speed < 0.3 second

Matching Method: 1:1; 1:N

Resolution 508 DPI
Voltage :DC 4.2-6.0V

FRR (False Rejection Ratio): ≤0.01%

FAR (False Acceptance Ratio): ≤0.0001%

Fingerprint capacity:1700(Default)

Antistatic capacity: 15KV

Abrasive resistance intensity: 1 million times

Peak power consumption: 60 mA

Work environment: -25°C —50°C

Work Humidity: 0-90%

You can dowload R301 user manual from the following website: pan.baidu.com/s/1sjMFu5v

Need to install the bracket, please click here

R301 fingerprint module circuit board diagram

3.3VDC power may be selected to supply when connecting the pin 2 and pin 3.

Caution: Operating carefully, and R301 will be damaged when wong connection.
