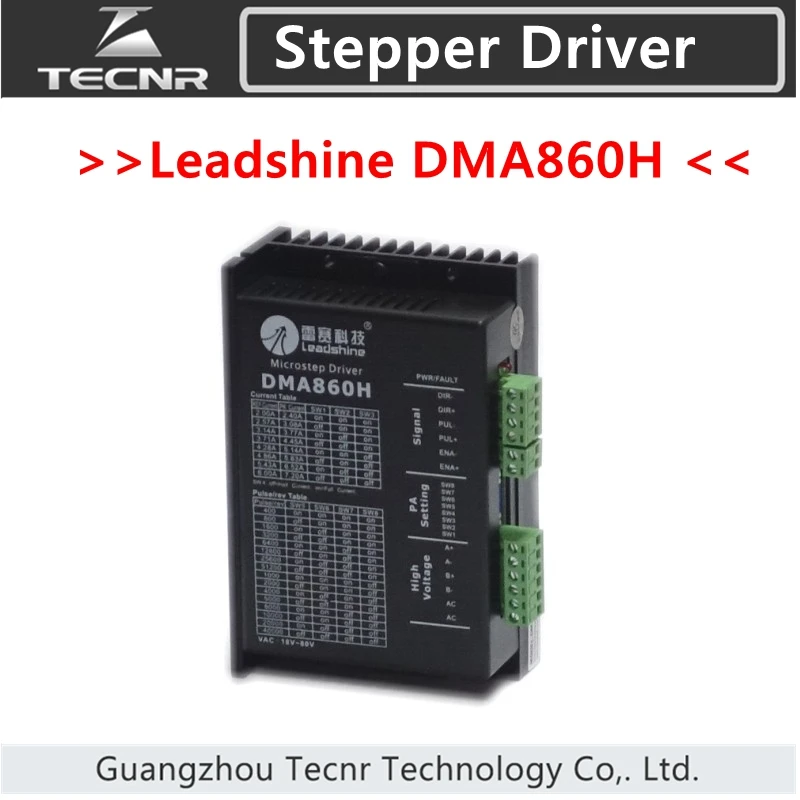

DMA860H step driver is the update of MA860H,the function are the same,can instead of MA860H
Description
DMA860H is th e lastest digital DSP 2 phase step driver, especially suitable for cnc router.
Matching step motor
DMA860H stepping motor driver,mainly for 86/110 2-Phase Stepping Motor,16 Micro step,max step is 51200Pulse/rev,Working current is range from 2.4A to 7.2A, 80VAC or +110VDC
Compatible
Compatible Leashine DM860,MA860H,MA860,M860.The performance is better than M-series
driver,low heater value,less vibration.
Brand: Leadshine
Model: DMA860H
For stepper motor : NEMA34 (86MM),NEMA 42(110MM)stepper motor
What`s the difference M860,MA860,MA860H,DMA860H ?
M860 direct-current (DC) MA860 direct-current (DC) and alternating current (AC) MA860H direct-current (DC) and alternating current (AC) DMA860H direct-current (DC) and alternating current (AC) Packing list 1PCS DMA860H stepper motor driver Features Extremely cost-effective Good high speed performance Supply voltage up to 80VAC or +110VDC Output current up to 7.2A Self-adjustment technology Pure-sinusoidal current control technology Pulse input frequency up to 300 KHz TTL compatible and optically isolated input Automatic idle-current reduction 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev Suitable for 2-phase and 4-phase motors Support PUL/DIR and CW/CCW modes Short-voltage, over-voltage, over-current and short-cicuit protection
