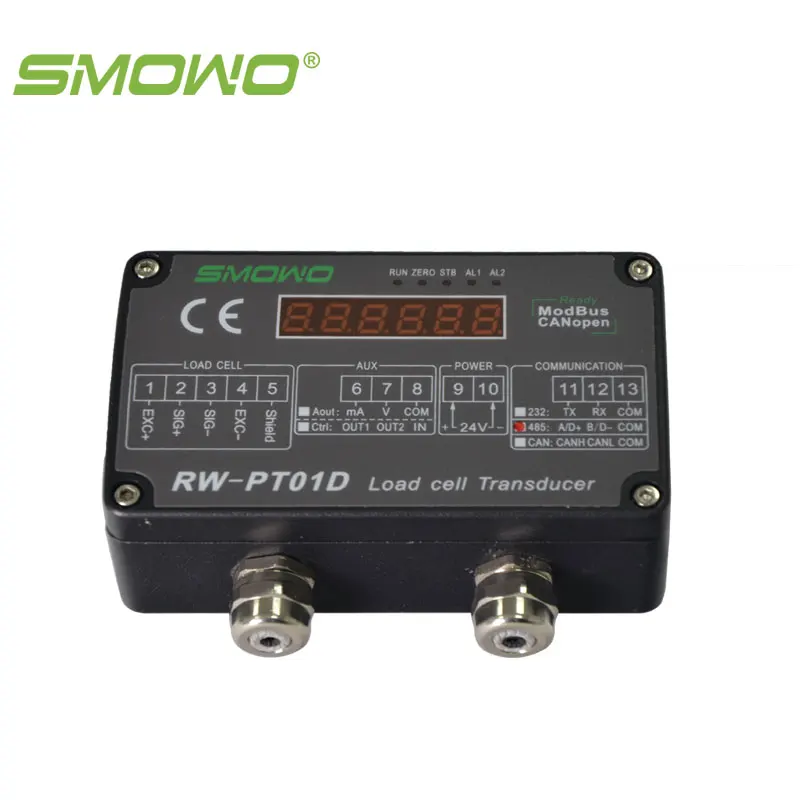

high precision digital load cell/sensor amplifier/transmitter RW-PT01D precision 0.1%

Brief Introduction

• Cast aluminum enclosure, waterproof design and strong sealing against harsh environment
• 24 digit high accuracy AD converter and high-speed microprocessor
• Internal digital filter with strong anti-interference ability
• Multi-section nonlinear calibration to improve measurement accuracy effectively
• RS232/RS485 or CAN communication*
• Current and voltage transmitting output or two-group electric transistor output*
• 6 digits high accuracy display*
• Strong load capacity with parallel connection to 8 load cells of 350Ω at the same time
• Wide range high-efficiency DC
• Excellent temperature stability
• Application: all the bridge stain gauge load cells for weighing, tension, compression, torque, et

* Need to choose expanded card when achieving related function

Technical Data

• Power Supply Voltage: 24Vdc(9-37Vdc)
• Excitation Voltage: 5Vdc
• Sensitivity: 0.8 to 3.9mV/V
• Communication Interface: RS232/RS485/CAN
• Communication Protocol: MODBUS RTU or CANOpen protocol
• Inner Resolution: >1000000
• Precision: 0.1/0.05%±2digit
• Load Capacity: 8 pcs of 350Ω load cells
• Temperature Coefficient: better than100ppm
• Working Environment: -30 to 85ºC, 85%RH
• Installation Mode: supporting feet fixture mounting
• Wiring Terminal: screw compact-type terminal, suitable for cable cross sectional area 0.32mm² to 3.33mm²(diameter 22 to 12AWG)
• Net Weight: 380g
