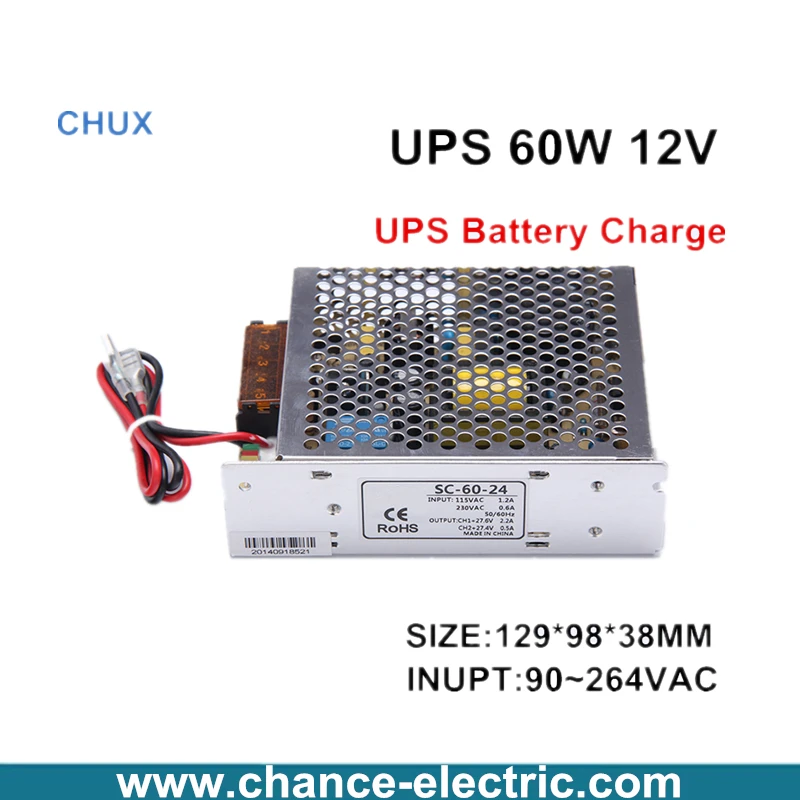

60W 12V universal AC UPS/Charge function monitor switching mode power supply (SC60W-12)
Features:·universal AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·Indicator for power on/charge/normal(LED)
·100% full load burn-in test
·Battery protection at low voltage
·2 Year warranty
UPS charging power supply Features: Long-term floating on the battery charge, high efficiency, battery fullness can reach more than 90% Full self-stop, to prevent the battery overcharge, effectively extend the battery life, Mains / battery automatic switching, no switching time, no human duty. The voltage after the power failure is the battery voltage direct output. Automatically switch to battery power after power failure. Battery power, when the voltage dropped to 10V, automatically turn off the output to prevent over-discharge, can effectively protect the battery. Which charge the battery has nothing to do with the size of the battery capacity of the slow charge, the battery capacity of small fast charge; Which power to the battery charge, no requirements for the type of battery, lead, lithium and other batteries are OK!…
PRODUCTS SHOW
|
Model |
SC-60-12 |
SC-60-24 |
|||
|
output |
DC voltage |
CH1:13.8V |
CH1:13.4V |
CH1:27.6V |
CH2:26.5V |
|
Voltage tolerance |
±1% |
—– |
±1% |
—– |
|
|
Rated current |
4.0A |
0.35A |
2.0A |
0.25A |
|
|
Current range |
0~4A |
—– |
0~2A |
—– |
|
|
Rated power |
59.9W |
61.8W |
|||
|
Ripple&noise |
100mvp-p |
—– |
100mvp-p |
—– |
|
|
DCvoltage ADJ.range |
CH1:11.3~14.9V |
CH1:21.3~29.8V |
|||
|
input |
Voltage range |
90~264VAC,127~370VDC |
|||
|
frequency |
47~63HZ |
||||
|
AC current |
1.6A/115VAC,0.8A/230VAC |
||||
|
efficiency |
81% |
83% |
|||
|
Inrush current |
Cold start current 25A/115VAC,45A/230VAC |
||||
|
Leakage current |
< 1mA/240VAC |
||||
|
protection |
Over load |
Rated output power110%~150% start over load protection |
|||
|
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed |
|||||
|
Battery protection At low voltage |
9.5~11V |
20~22V |
|||
|
protection mode:cutoff output |
|||||
|
Function |
UPS introduction |
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it’s full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user’s emergency needs |
|||
|
environment |
Working temp,humidity |
-10°C~+60°C,20%~90%RH |
|||
|
Storagetemp,humidity |
-20°C~+85°C,10%~95%RH non-condensing |
||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
||||
|
safety |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
||||
|
Fitstandard |
Safety standard |
Compliance to UL60950-1 |
|||
|
EMC standard |
Compliance to EN55022,CLASSB |
||||
|
others |
Dimension |
129*98*38mm (L*W*H) |
|||
|
Weight/packing |
0.52kg/45pcs/24kg/0.034m⊃3;/1.2CUFT |
||||
