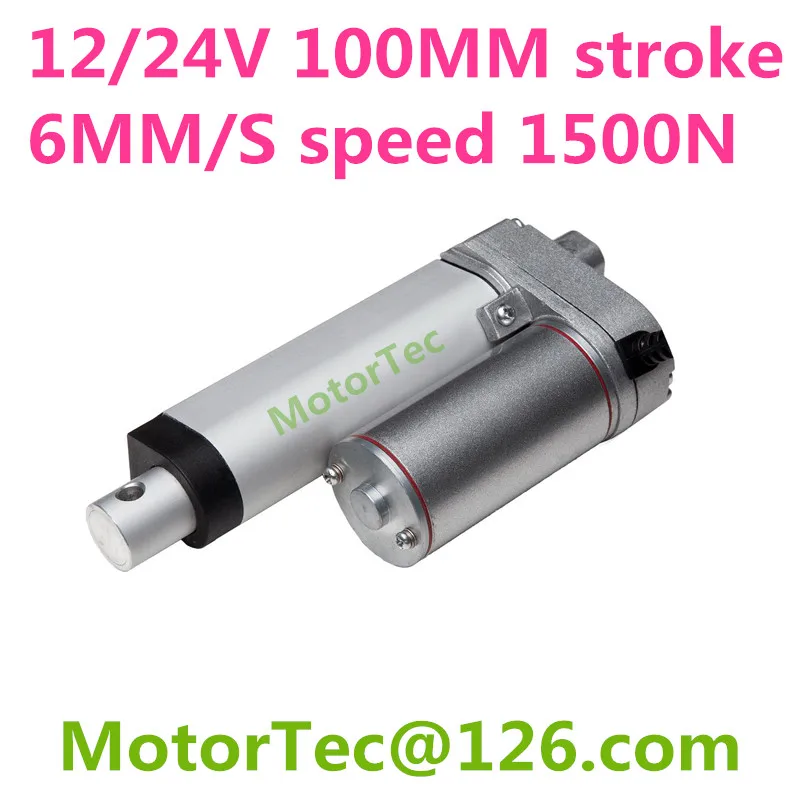

12V 24V 6mm/s speed 100mm stroke 1500N 150KG 330 lbs load Waterproof electric dc linear actuator

A linear actuator is an actuator that creates motion in a straight line with electricity. Linear actuators are used in electric bed or door or window, adjustable sofa, machine tools and industrial machinery.

Spec:

1 Type LV-1

2 Input 12|24VDC

(Generally speaking,I send you 12V. If you want 24V,please leave note when ordering)

3 Load 1500N=150KG=330LBS

4 Speed 6mm per sec=0.24 inch per sec

5 Limited switch With

6 Stroke length 100mm=4 inch

7 Inner tube material Aluminum Alloy

8 Worm Gear Metal gear

9 Duty cycle 25%

10 Color Silver

11 Operation temperature -26 ~ +65 degree

12 IP IP65

Drawing

Lmin=105+Stroke=105+100=205mm

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke=205+100=305mm

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.

Question:

1 Can you supply customized other stroke,speed and load? Yes.

2 Can you supply customized cable? Yes

3 Can you supply control box and hand switch? Yes

4 Can I get discount if I buy big quantity? Yes

Warranty

1. If you do not receive product, we will full refund you.

2. If the product has quality problem, we will full refund you.

3. If the product is damaged by express company, we will full refund you.

Payment

We accept paypal, Escrow,Western union and bank transfer.

Shipping

1. Order will be delivered within 3-5 days.

2. Please make sure your address and phone is correct.

3. In order to save your import tax, we will declare low price in invoice.

Thanks for visiting my store.
