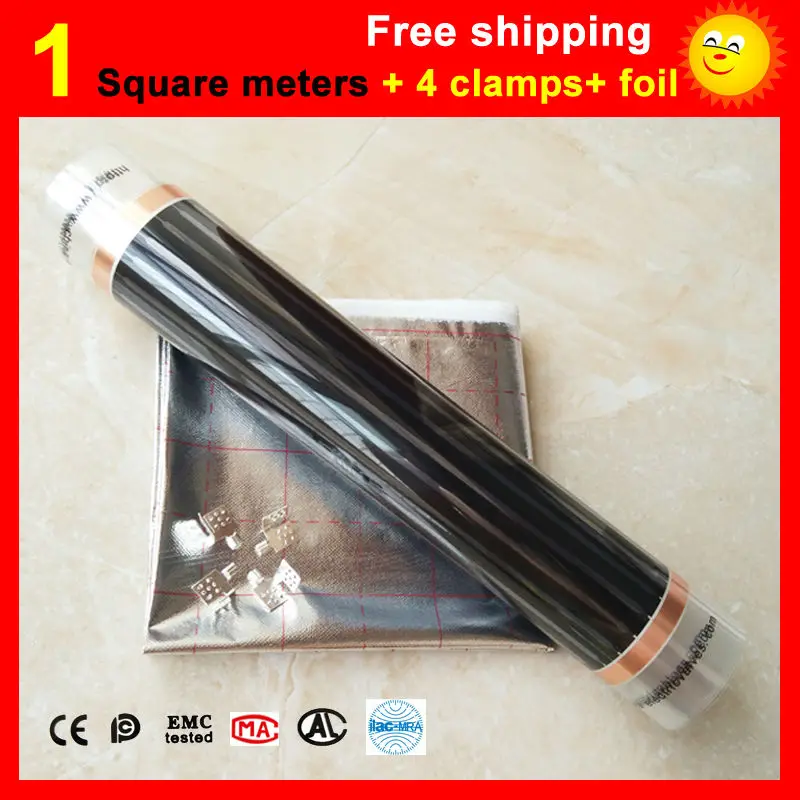

1 Square meter floor Heating film + 4 Clamps + Aluminum foil, AC220V infrared heating film 50cm x 2m electric heater for room
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category
High quality & Low price for customers!
TF FLUID CONTROL SYSTEMS Co, Ltd is a manufacture specialized in HVAC products. Floor heating system (wall and ceiling heating), Infrared Heating Film in China.
TF has used the traditional style of heating, applied modern technology and design, resulting in superior heating system of floor, wall and ceiling heating, coupled with extraordinary cost savings and environmental benefits.
This Heating System is applied to most residential buildings, such as house, hotel, sauna, beauty saloon, office, etc.
Accessories include:
1. Clamps X 4 pieces;
2. Aluminum foil X 1 square meter;
Infrared Electric Heating Film Specification Data:
|
Power supply: 230VAC, 50Hz |
IP Grade: IP54 |
|
Compression strength: 2750V |
Tensile strength: 0.15mp/cm2 |
|
Insulation grade: B1 |
Ambient temperature: -40~+90Centigrade |
|
Radiance: 75%~85% |
Oxygen index: >31% |
|
Thickness: 0.25mm |
Wavelength of radiation: 8~15m |
|
The max breakdown voltage: 10,000V |
Melting temperature: 110Centigrade |
|
Flame retardant rating: UL94VO |
Infrared energy: 756.9K/Square meter |
|
Adhesive strength: 8.0kg/cm2 |
The max surface temperature: 73Centigrade |
Infrared Electric Heating Film Size:
|
Item No. |
Width (mm) |
Thickness (mm) |
Length (m/roll) |
Weight (Kg) |
Electric Consumption (Watt/m) |
|
TF-705 |
500 |
0.25 |
2 |
0.6 |
110W |
Power consumption of heating film:
Electric film rated power is 220W/Square meter. Means full loading: 0.2 kWh. Installed electric film heating system, are relying thermostat control, intermittent work to make the room temperature is maintained constant. When the room reaches the set temperature, the system will enter standby mode.
Only 150W power per square meter!! Paved area of 70% of the room can achieve heating requirements. According to the test, when the outdoor temperature is -6 degrees Celsius, the indoor temperature want to maintain at 20 degrees Celsius, under the control of the thermostat, electric film per day per square meter of actual working time is 4-8 hours. Daily consumption per square meter is about 0.9 kWh.
Saving essentials:
(1) An electrical heating system of the room to do better warm insulation, electric film actual working time will be shorter, thereby reducing power consumption. It is more convenient than the boiler and more environmentally friendly.
(2) Install thermostats in each room, separate control. Close heating system when no body in the room, thereby reducing the working area, to save power. It is the same principle with central air condition, but more comfortable.
Location Picture:
Installation Picture:
Cases:
FAQ:
|
Customers Question 1: Will electric film heating leak? Waterproof? |
|
Customer Question 2: electric film to warm the same principle with electric blanket? |
|
Customer Question 3: Will electric film heating produce electromagnetic waves? |
|
Customer Question 4: Will power consumption of electric film as much as warm electric heating (electric stove) does? |
|
Customer Question 5: When electric film heating installation, what are the requirements on the ground? |
|
Customer Question 6: After electric film installation finished, what kinds of materials can be put above it? |
|
Customer Question 7: Can pure solid wood floor put above electric film? |
|
Customer Question 8: Is there requirements for thickness when laying laminate floor above electric film? Answer: laminate flooring would better not more than 8 mm thick, too thick not conducive to save energy. |
|
Customer Question 9: After electric film installed in accordance with operating specifications, dose it need to do maintenance? |
|
Customer Question 10: When buying electric film, how to calculate the purchase area? |
Packing:
