RIAN BIRD Controller irrigation system kit sprinkler valve

RAIN BIRD ESP-RZX4i X1 PCS

Z&W 100D 1″ X4 PCS

ZM”ACC04-17AN X25PCS

Product Description

Package Quantity:1

The popular Rain Bird ESP Series of sprinkler controllers has been expanded to provide a contractor grade irrigation controller for residential applications. The ESP-RZX provides zone based set up that is easier to understand by untrained users. The ESP-RZX provides flexible scheduling features that make the controller ideal for a wide variety of applications including residential irrigation systems. The ESP-RZX Controller was designed with ease of use in mind. Zone-based scheduling allows every valve to be scheduled independently. The large LCD display shows all of the programming for each zone at the same time. Simple graphic based user interface is easy to understand and presents every controller feature at your fingertips.

Product Description

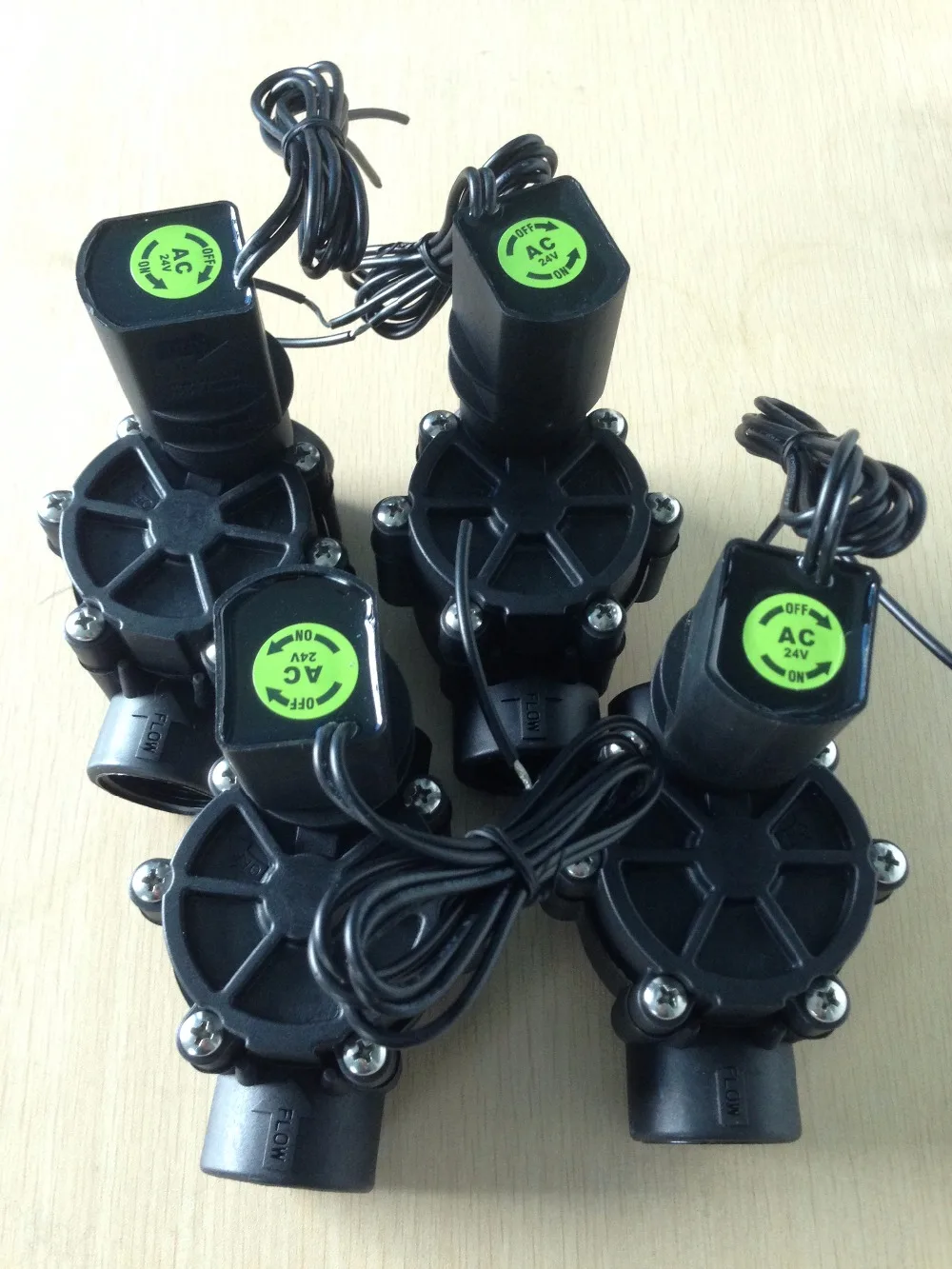

Package Quantity:4 Product Description Z&W 100D 1″ in-line automatic sprinkler valve. This residential/light commercial grade In-Line valve replaces Rain Bird and other irrigation valves installed below ground with 1″ female threaded inlet and outlet. For use with any 24 volt AC irrigation timer/controller. . A unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure keeping the valve closed and saving water. This valve can be used with all types of watering devices including Rain Bird ,hunter,ZM” spray heads, rotors, and impacts. Valve operates automatically or manually with manual bleed screw. Flow control models regulate the flow of water to sprinklers to avoid misting. Buna-N (nitrile rubber) diaphragm offers superior performance in harsh water environments. Features and benefits: Buna-N diaphragm offers superior performance in harsh water environments. Reliable, non-clogging design. Reverse Flow design reduces stress on diaphragm for dependable operation. In-line design minimizes pressure loss of dirt and debris during installation and system start-up. Operates automatically or manually with manual bleed screw. Works with any standard sprinkler timer. Designed for below-ground installation, out of sight and away from playful hands.

• Package Quantity:25
• Type: Sprinklers
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: ZM”(irrigation pop up sprinkler)
• Model Number: ACC04-17AN
• Sprinkler Type: Popup
• Material: ABS &PP&S.S.304
• Thread size: 1/2″ NPT female
• Overall height:18.4cm
• Exposed diameter: 3cm
• Flow rate: 0.07-0.95m³/h
• Radius: 2.5-5.2m
• Recommended pressure range: 1.0-3.0bar
• Precipition rates: 43mm/hr approx
• Nozzle: 17AN,black
• Application: lawn,residential
•
•
